Description

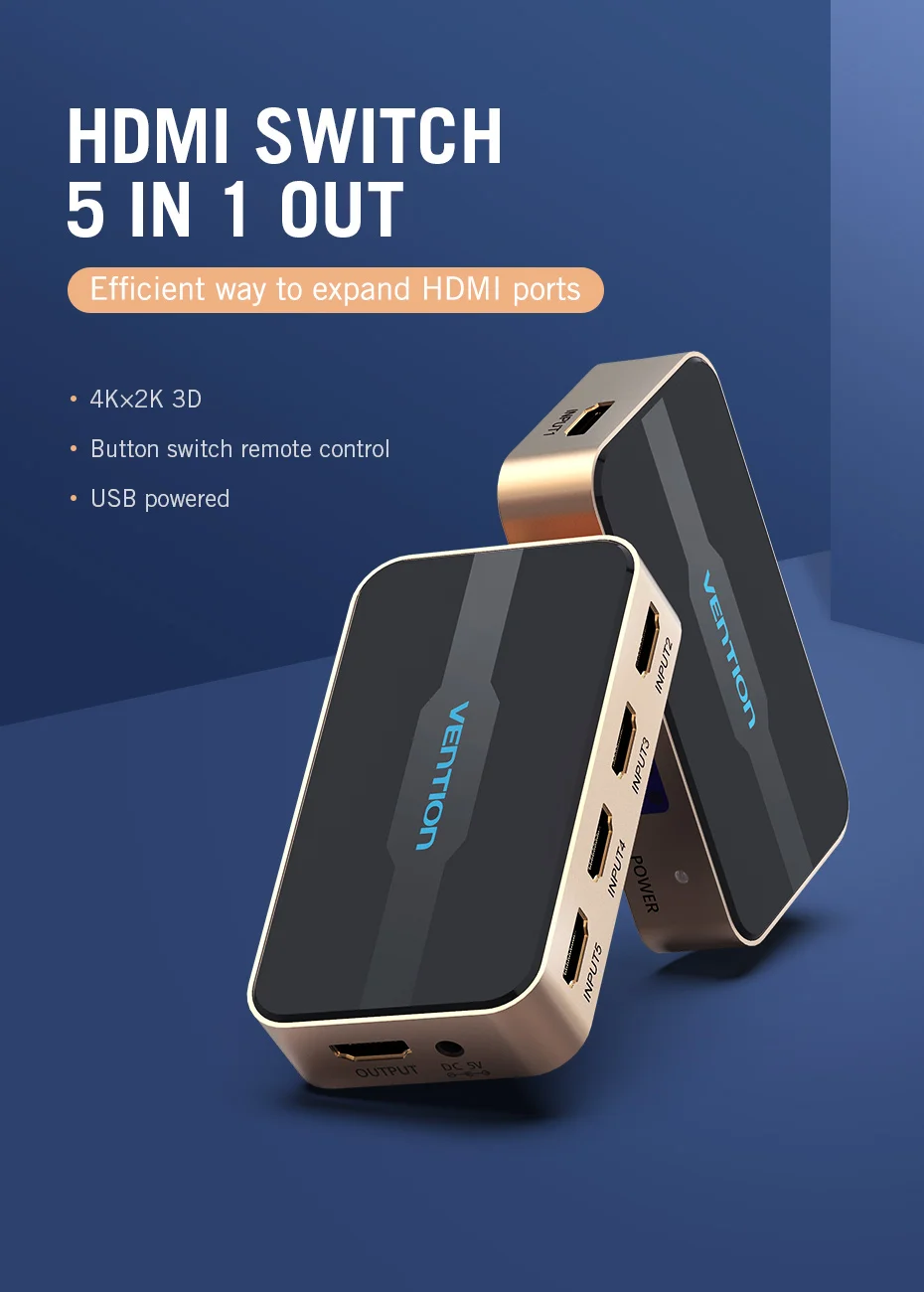

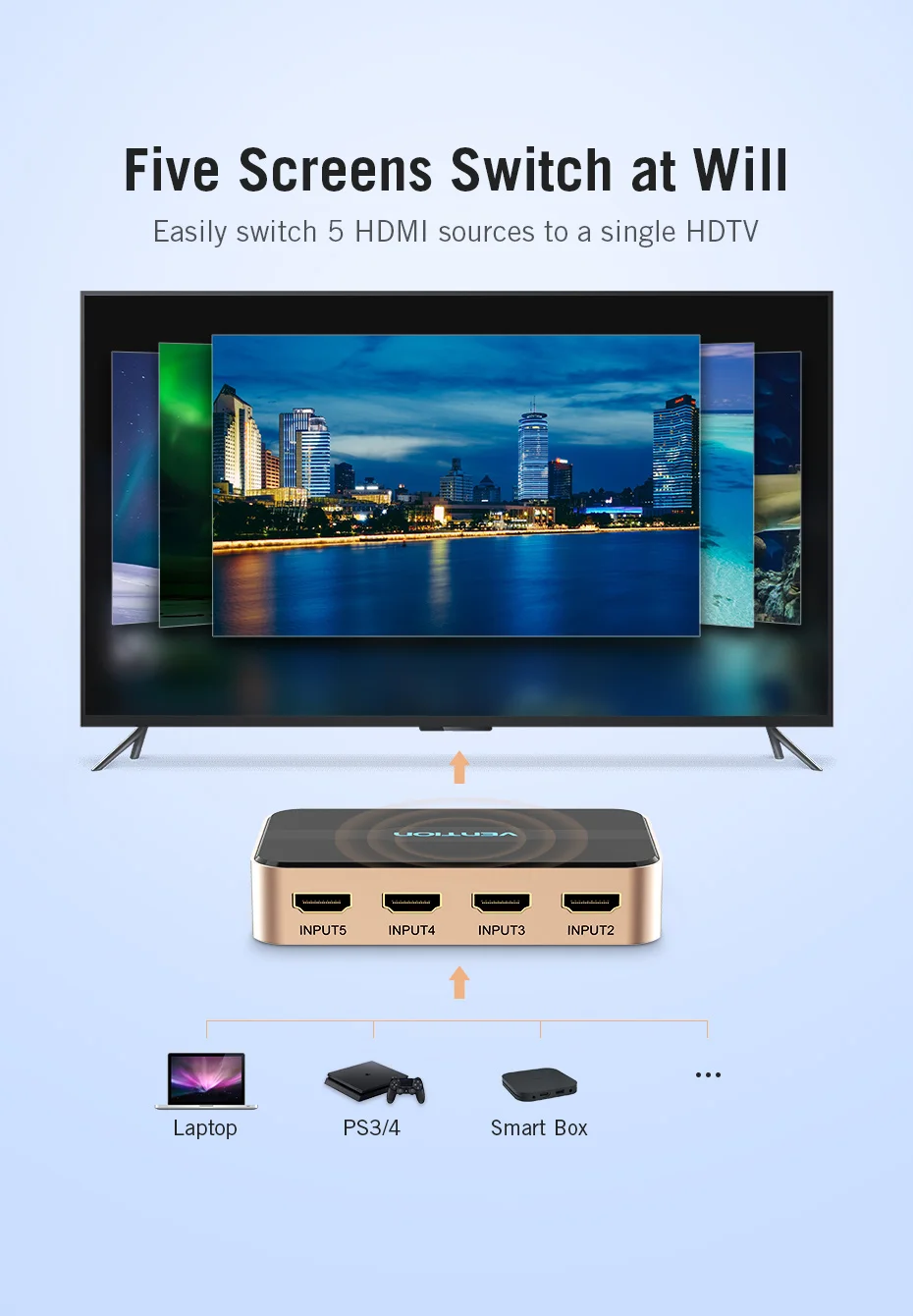

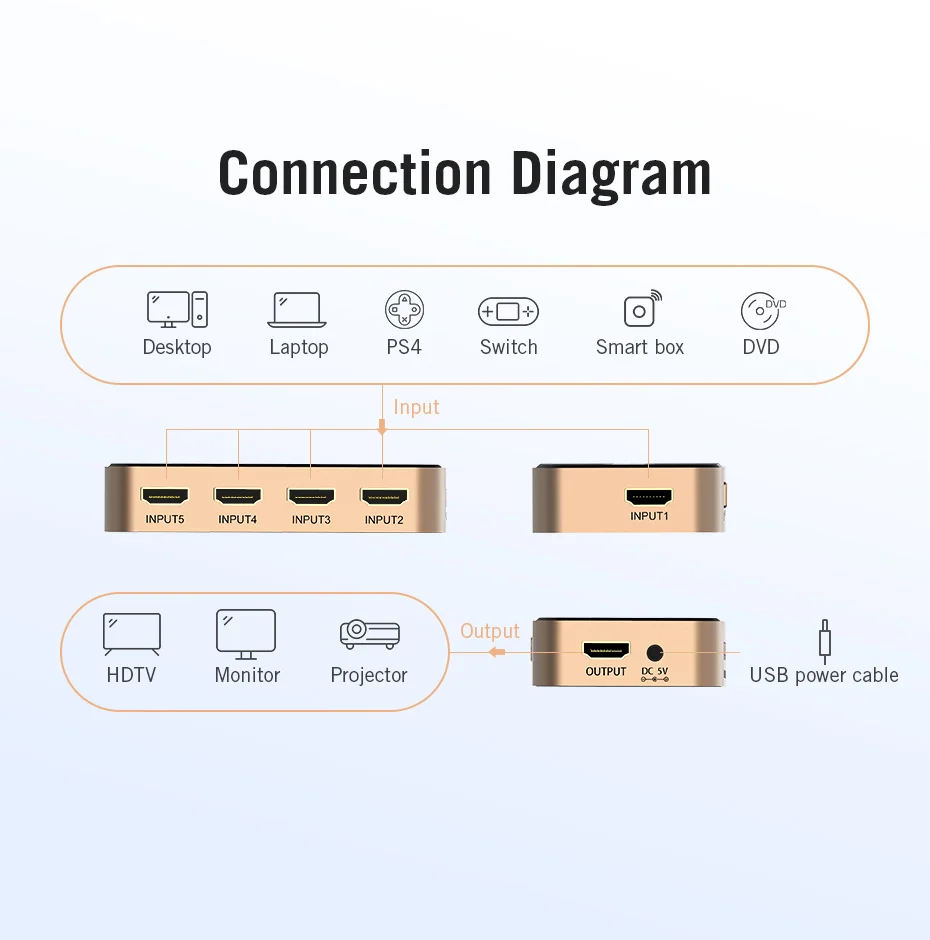

HDMI 5 in 1 out switcher provides a way to switch among multiple HDMI sources, like Laptop, HD-DVD, PS3, Xbox360 to a HDMI TV or display. It allows the switching of 5 inputs and maintains all signal components present within the encoded signal HDCP encryption. You could easily select from different programme sources via front panel push buttons or IR remote control without moving cables around.

Note
1. Suggest using HDMI 1.4 cable as input source cable; don't support TV stick.
2. Suggest input HDMI cable less than or equal to 15ft, output HDMI cable less than or equal to 15ft.

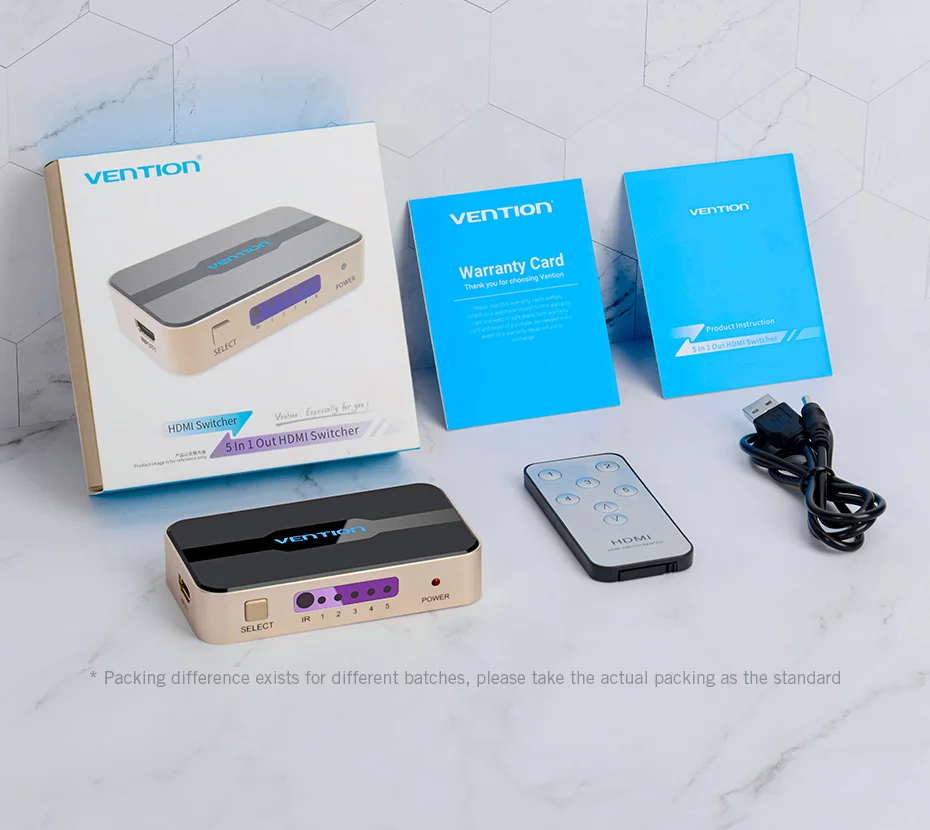

3. There is a plastic film in the battery slot of the remote, please remove it firstly before using the remote.

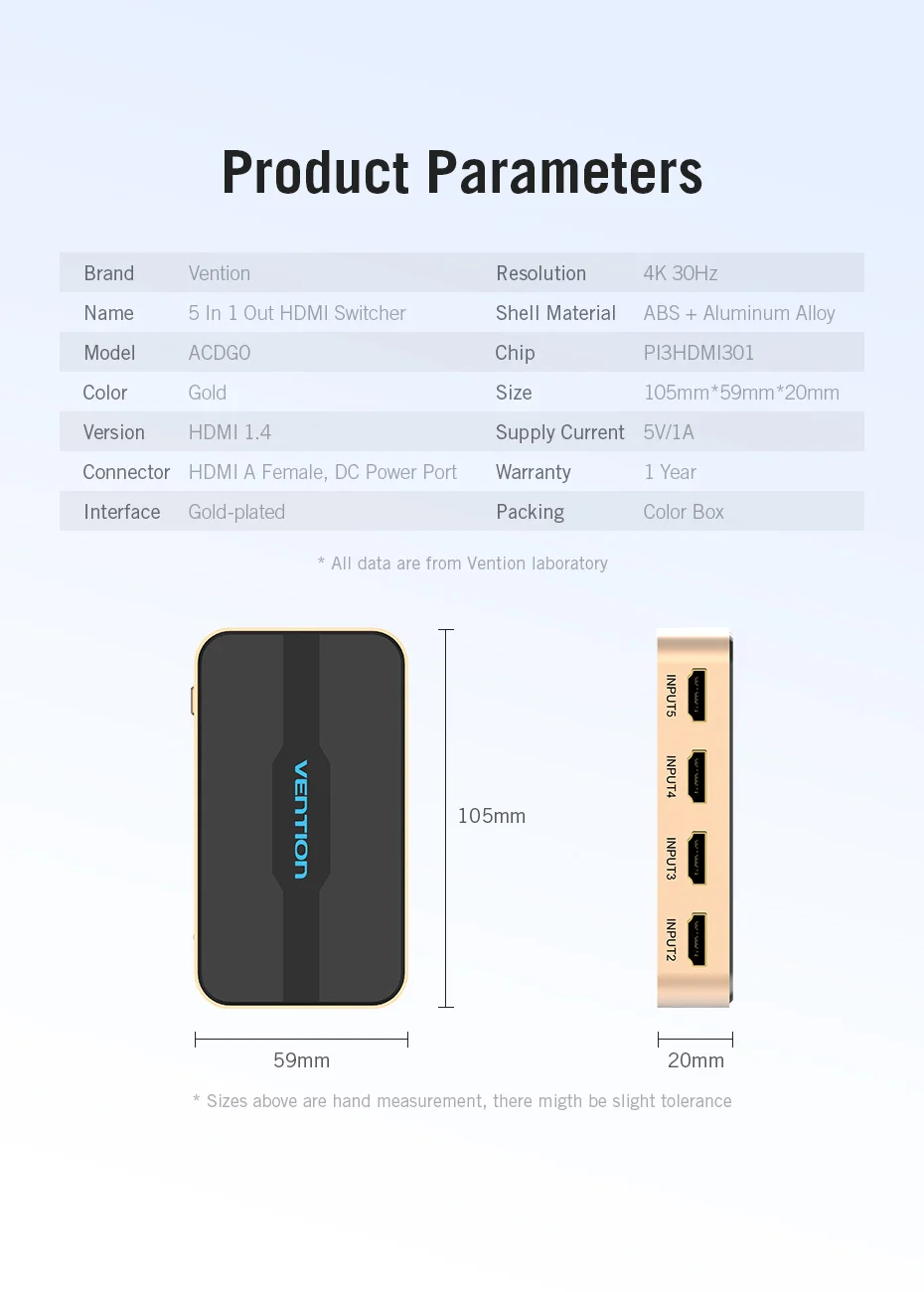

Product Parameters
Brand:Vention
Name:5 In 1 Out HDMI switch
Model: ACDG0
Color: Black + Gold
Connector Type: HDMI A Female, DC Power Port
Version: HDMI 1.4

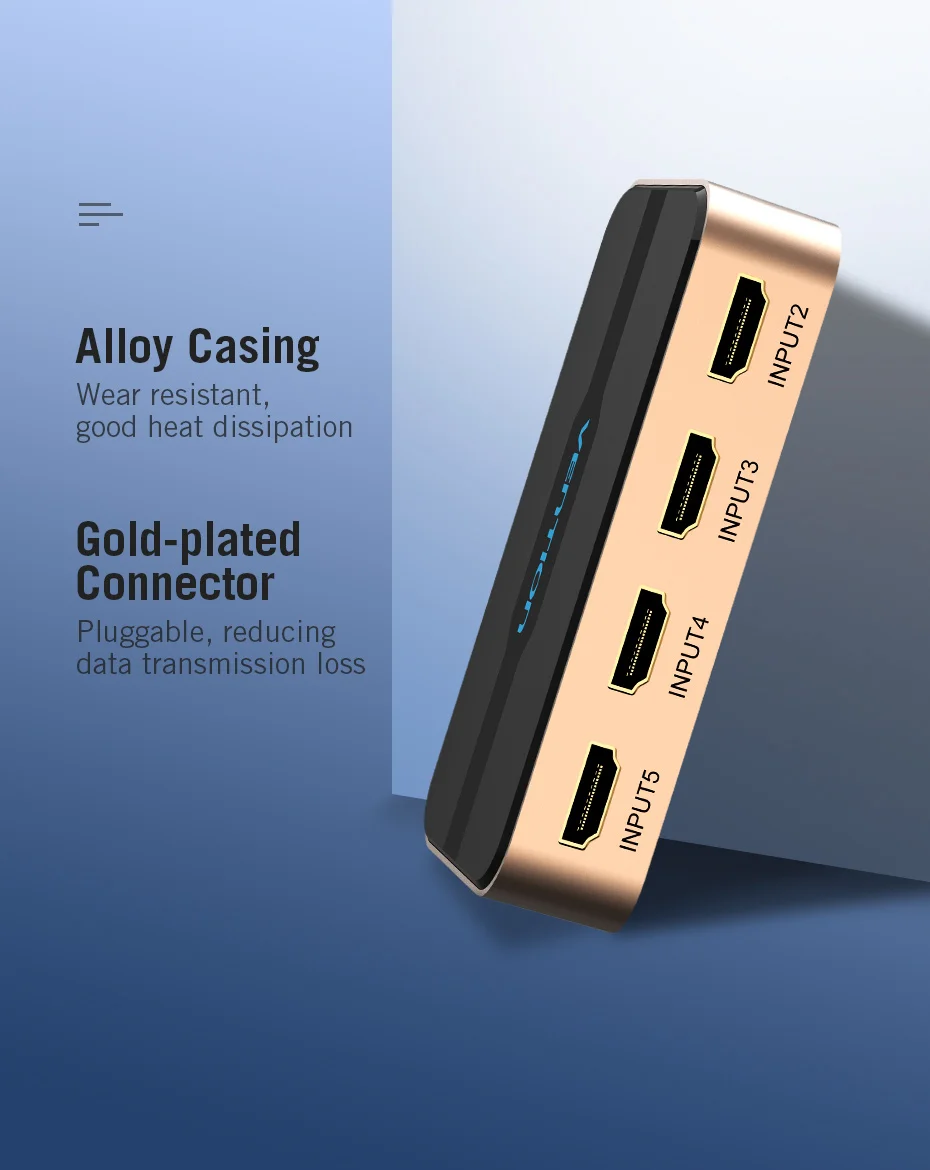

Connector: Gold Plated
Resolution: 4K 30Hz
Transmission Direction: HDMI to HDMI (INPUT to OUTPUT)
Shell Material: Aluminum Alloy + ABS

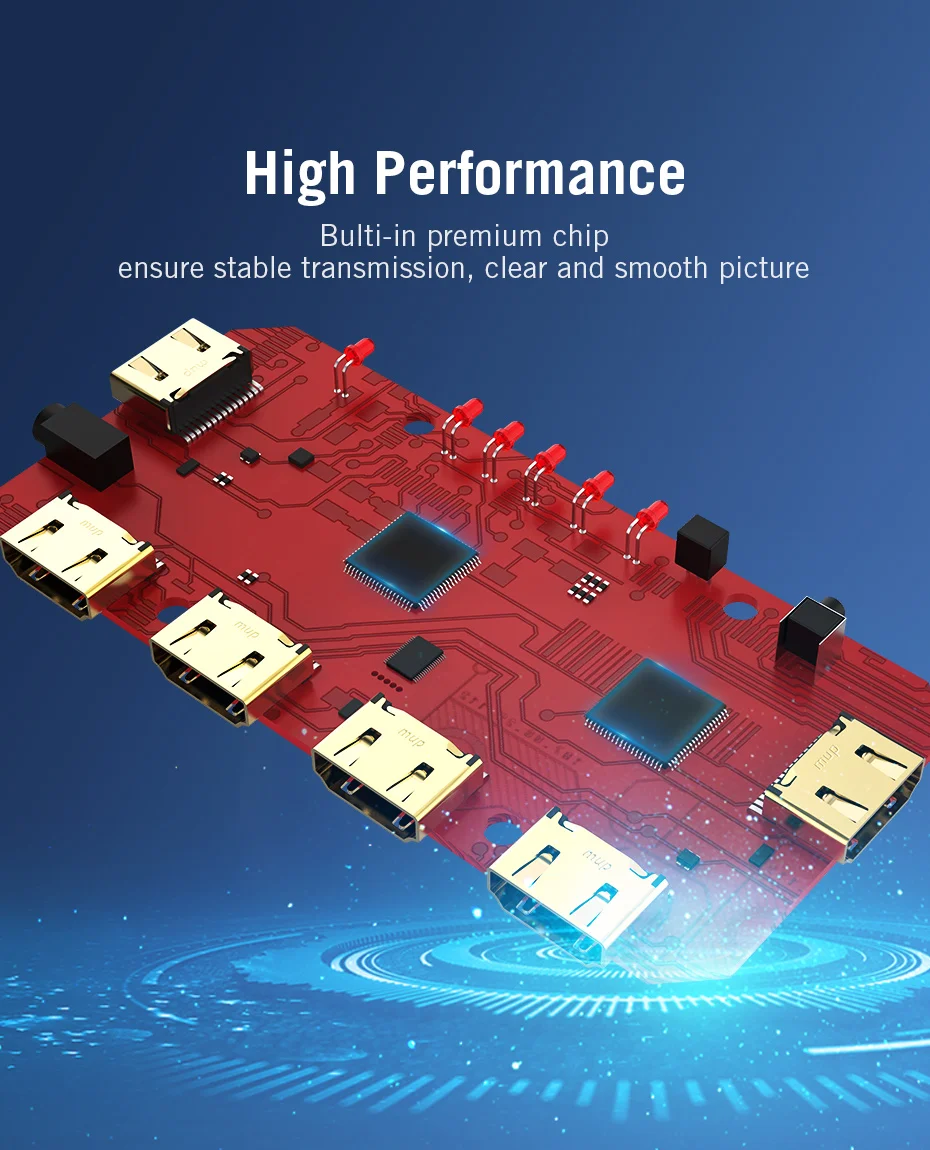

Chip: PI3HDMI301
Range of Working Temperature:(-10 to +50 degrees Celsius)
Operating Humidity Range:5 to 80%

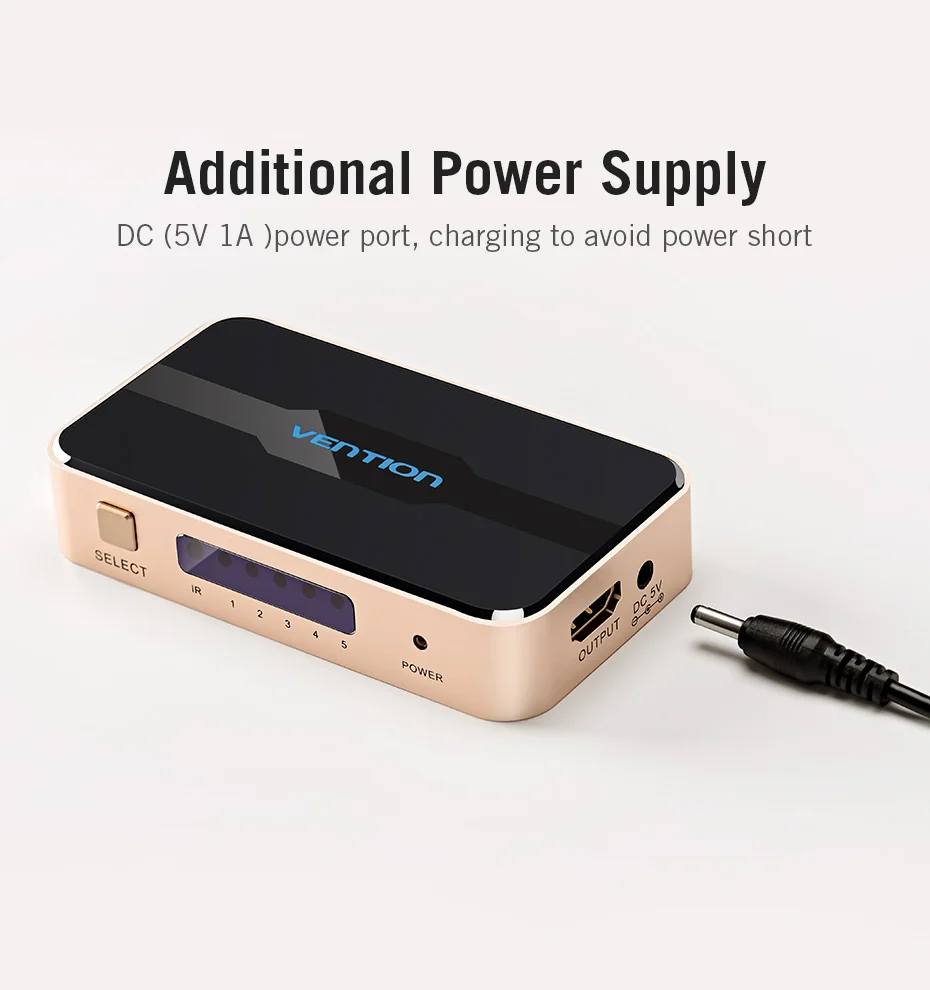

Power: DC 5V/1A

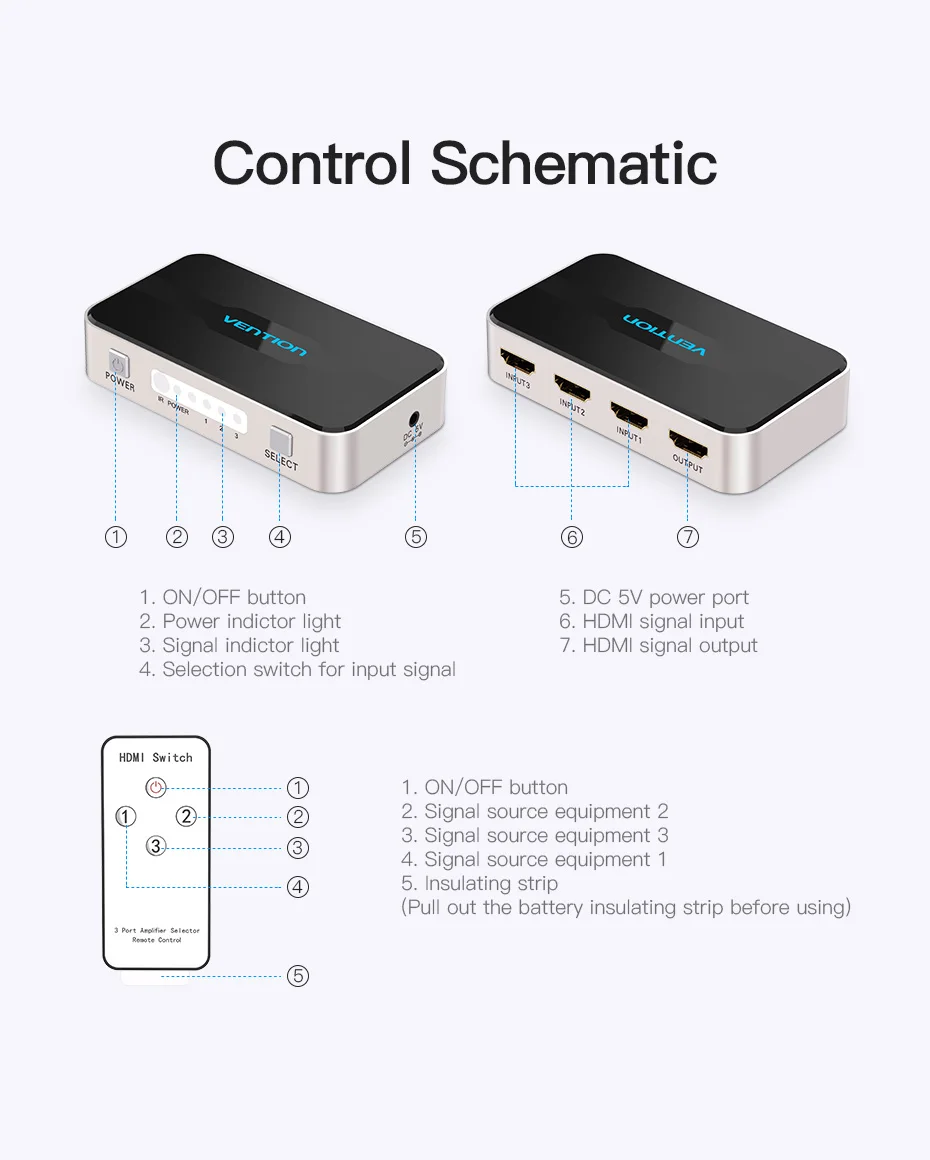

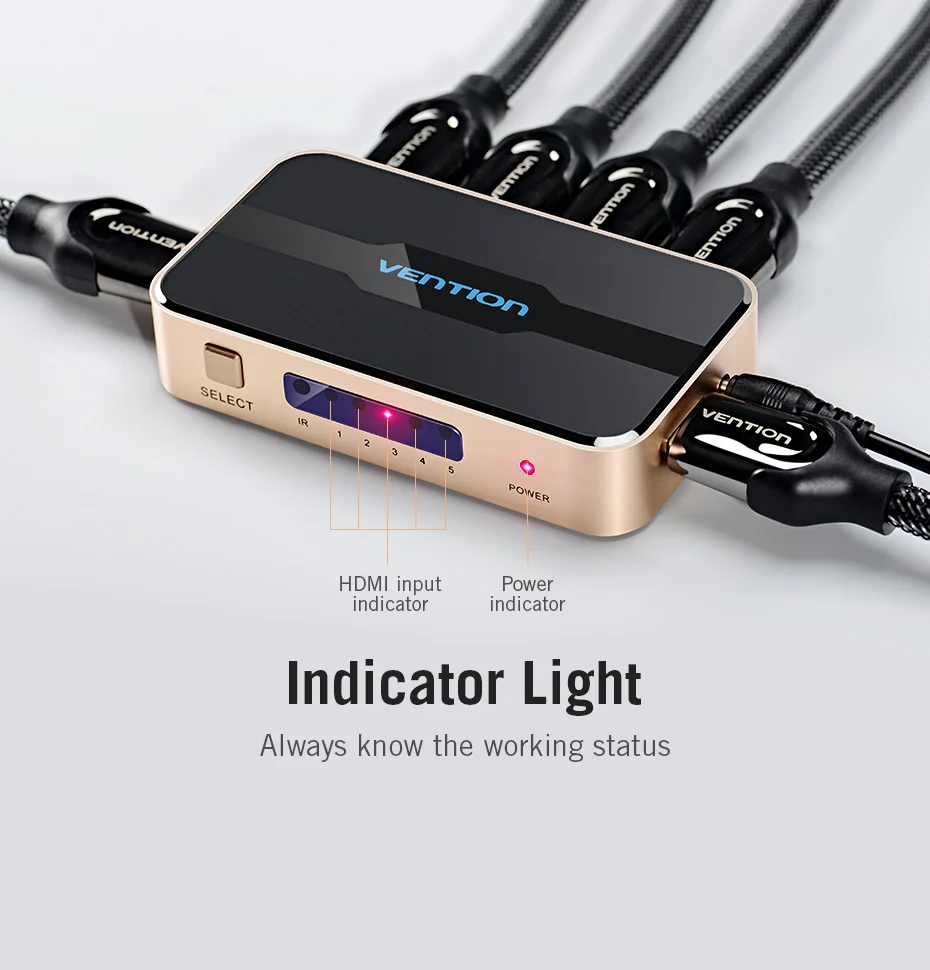

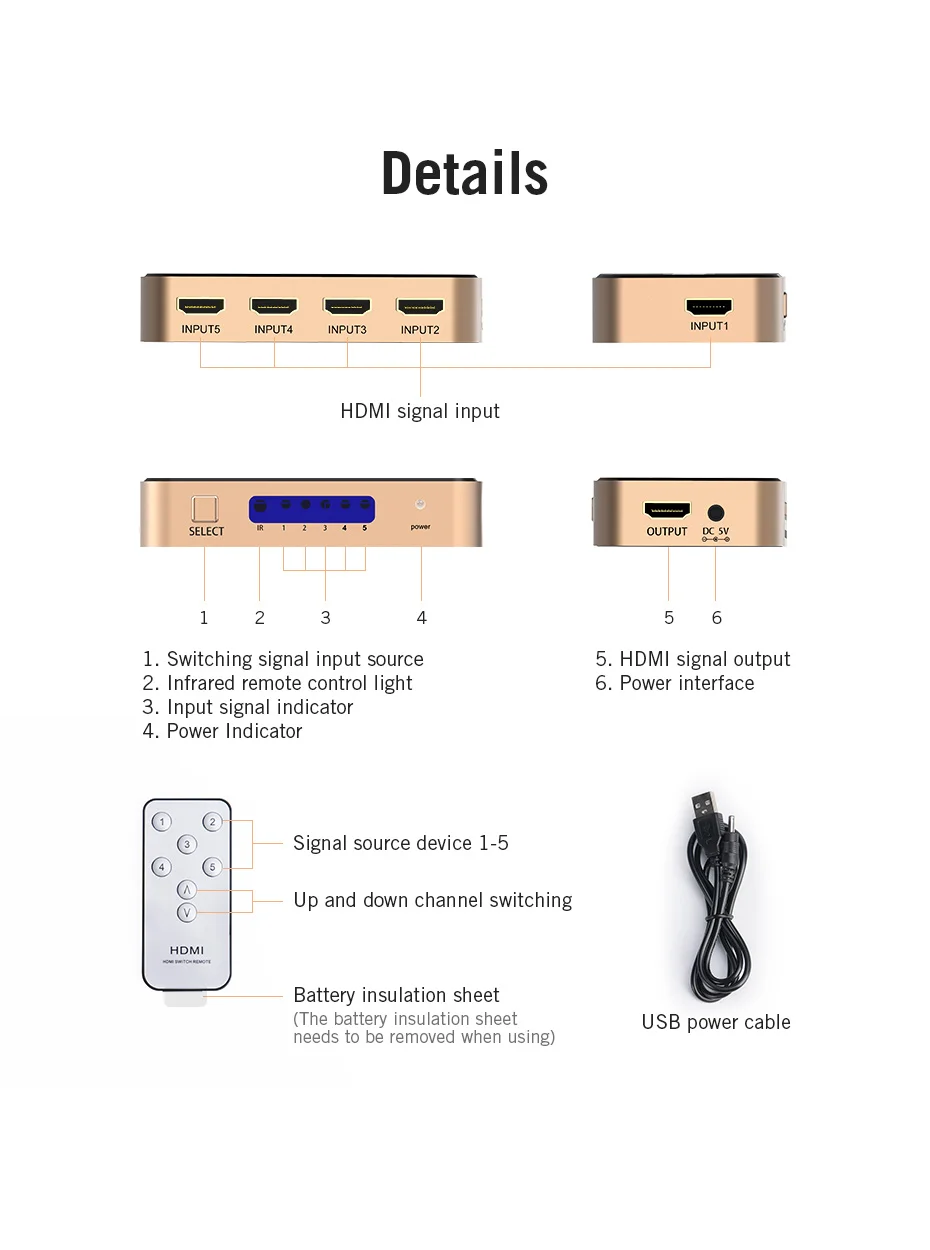

Indicator Light: LED Power Indicator, 5 Signal Indicators
Support Input Line: 10-15m
Output Line: 10-15m
Warranty: 1 Year
Packing:Vention Retail Box

Note:The above are the specific parameters of the 5-in-1 switcher
